Blood Bag Tube Sealer

BLOOD BAG TUBE SEALER BBS2015-B

Send Enquiry

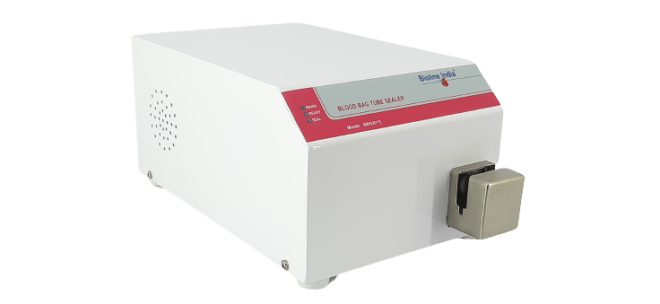

Blood Bag Tube Sealer BBTS2015-B (Battery Back up)

The unit is heavy duty & based on RF 40.63 MHz Di-Electric heating without damaging the blood cells.

Input Voltage 115/230 V , 50/60 Hz

Blood Bag Tube Sealer seals tube of 4-6 mm diameter. Sealing is with in 1.5 second / tube. Indication sealing.

Sealer based on RF dielectric heating which gives unique sealing finish and RF signal is applied only after the tube is fully squeezed.

Stand wide input voltage fluctuation



SALIENT FEATURES:

  • Lightweight, portable and heavy-duty.
  • Modern electronic system.
  • Sealing time is variable from 0.5 to 3 sec.
  • Wide seal of 2 mm thickness.
  • Easy to clean electrodes.
  • Electrodes well protected by a cover.
  • Able to seal all blood bag tubes.
  • Sealing trigging automatic.
  • Continuous Battery back up 230V in online mode.
  • Battery backup gives 500 sealings when fully charged on offline mode.
Specifications :

Oscillation Frequency: 40.63 Mhz.

RF Output                    : 15 W or less

Sealing Type                : Automatic

EEC Standard             :Class 1 (93/42 and  7/2007 MDD)

Input Voltage              :230  V , 50/60 Hz

Battery Charger          : SMPS ,200 – 250 V,

Out Put Voltage:         : 12 V

Ref Standard               :  E-60601-1 Electric

Safety,                           : E 60601-1-2 For EMC

Power Consumption  : 100 VA

Weight                          : Approx 4 kgs.

Effect Consumption   : 100 W maximum    effect

Classification               : Protection against Electrical shock.
