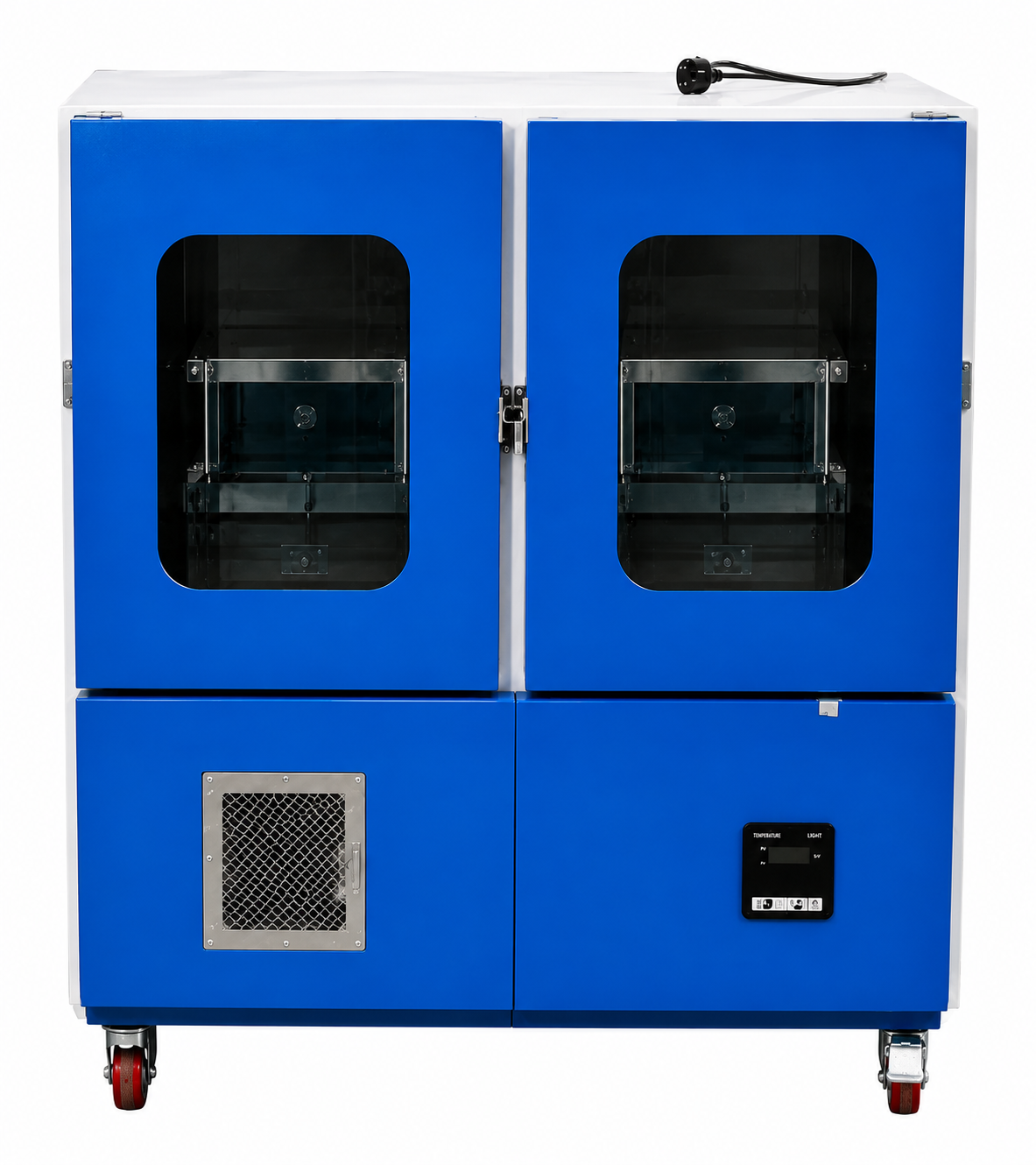

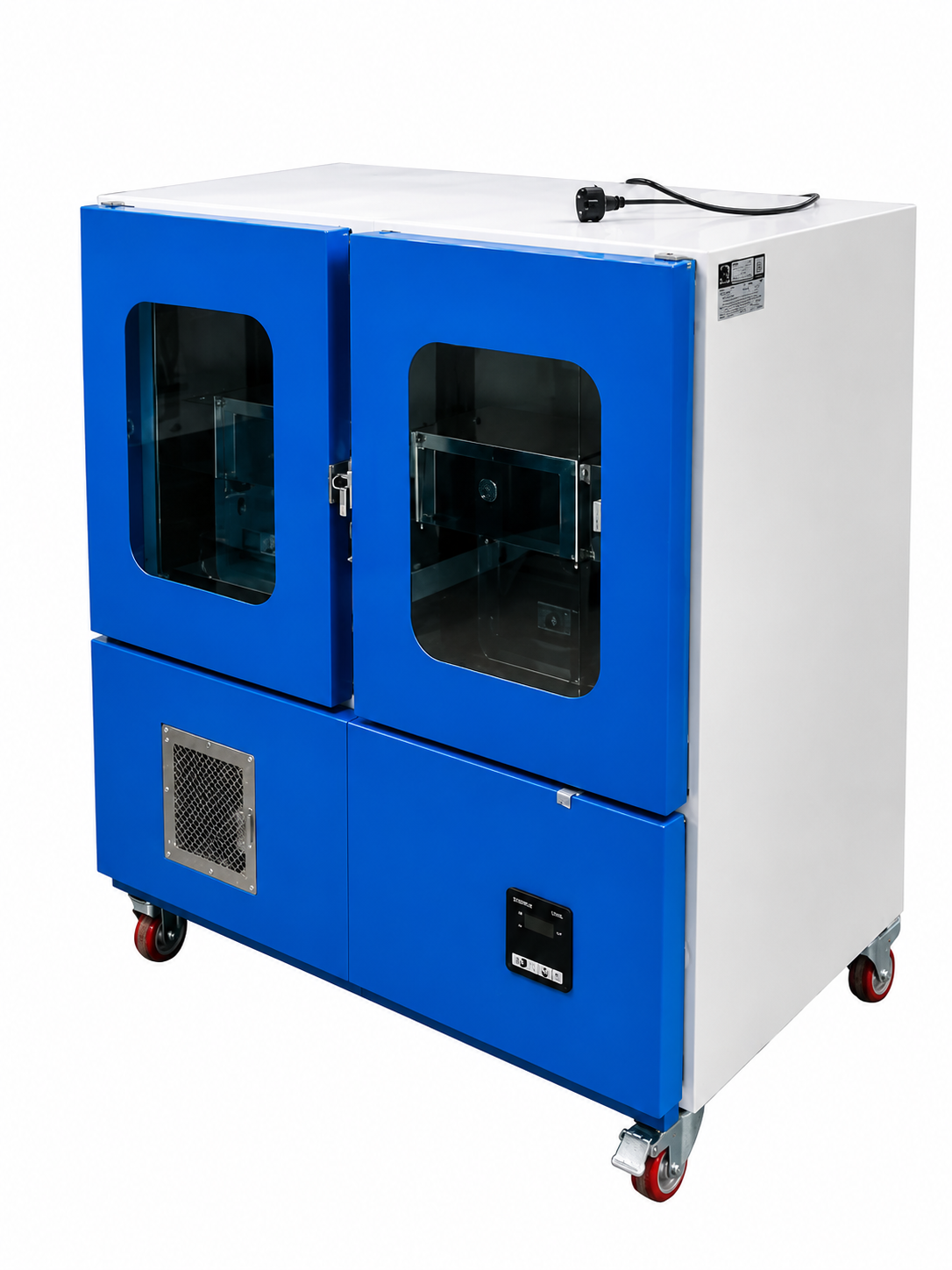

96 BAGS PLATELET INCUBATOR : Model No. BPIA
Bioline India’s Platelet Incubator BPI Microprocessor based integrated system provides excellent temperature accuracy of ±1°C. 7 days chart recorder & audio visual alarm system helps to indicate disturbance in storage conditions. BPI offer innovations in performance, reliability, monitoring and efficiency for optimized platelet storage. The superior temperature uniformity inside the chamber, through the forced-air refrigeration system and precision pulse heating, provides an optimal operating temperature range from +20°C to +35°C.
- SALIENT FETURES
- Incubator to house the agitator with capacity to hold 96 donor platelet units.
- Equipment has lockable castor wheels.
- Microprocessor based heating and refrigeration system (forced-air) to control the temperature of incubator within 20° C 12° C using CFC free refrigerants.
- LED display with temperature controlling resolution: 0.5° C and display resolution 0.1°C.
- Equipment is equipped with temperature chart recorder for continuous recording of temperature.
- Interior construction: Anti corrosion Stainless Steel SS 306 interior
- Exterior construction: Bacteria resistant powder coate
- Transparent Door (lockable) with anti-fogging inner glass with magnetic seal.
- Condensate evaporation will be provided
- audio/visual alarm: in case of high temperature, low temp, agitator failure, door temperature sensor failure.
- Power source: 220-230V, 50-60 Hz AC.
- Door lock key provided.

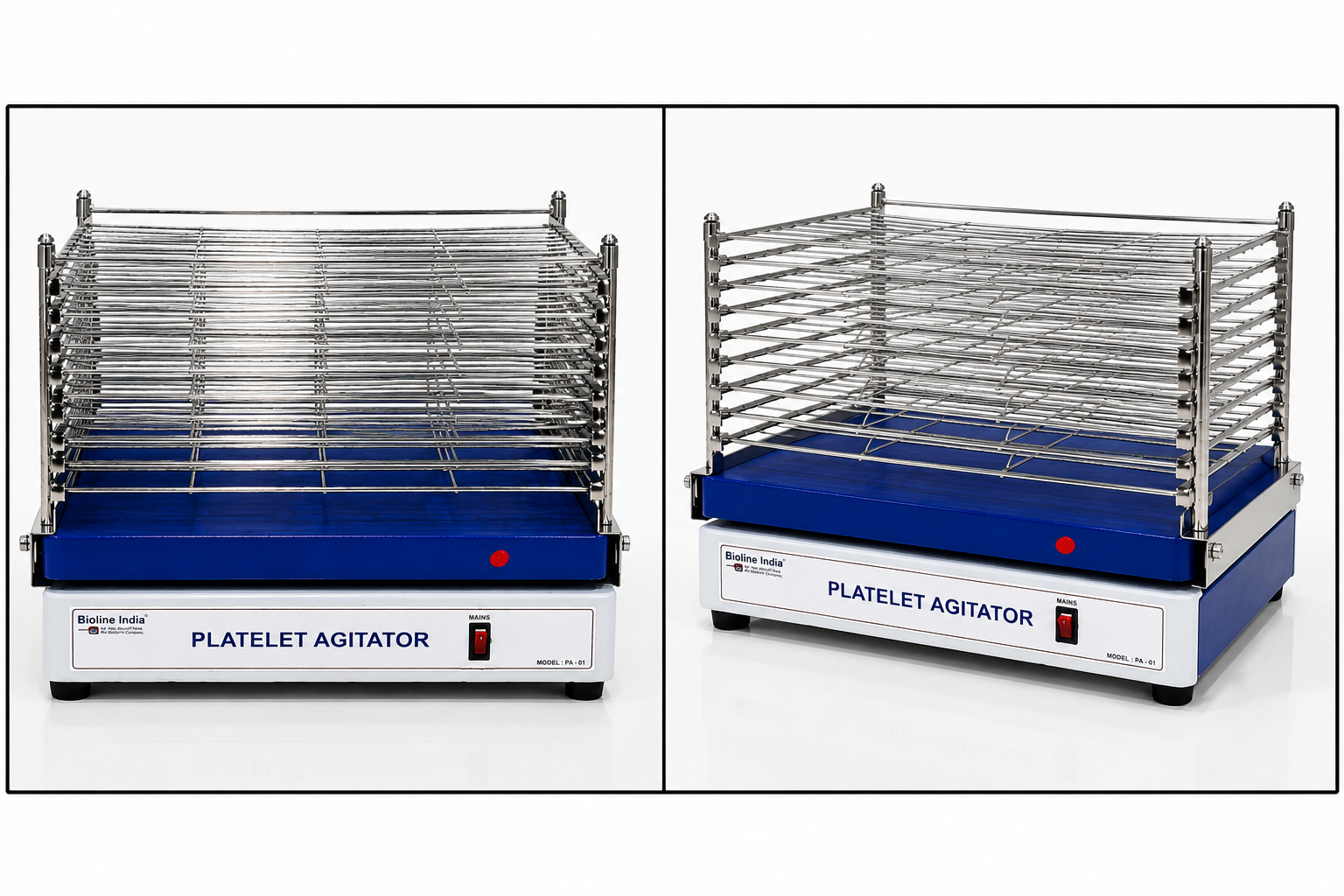

PLATELET AGITATOR : Model No. BPA
Bioline India’s Platelet agitators BPA assures ongoing gentle agitation for the platelets. BPA provides continuous side-to-side, horizontal motion for the safe storage of the platelets. The platforms glide and agitate smoothly. eliminating the need for ball bearings which wear down and squeak. The sturdy, medical grade stainless steel drawers with non-slip textured base provides uniform air circulation, and ensures an optimal storage environment. The user may opt to use the Bioline lndia Platelet Agitator as standalone instrument. The motion alarm attioensure that the platelets remain in continuous motion.
Each BPIA consists of 1 Platelet Incubator and 2 Agitators.
- SALIENT FETURES
- Easy Pull out, adjustable shelves ensures inventory management
- Robust motorized slide for effective 24X7 continuous jerk free agitation
- Fixed speed agitation with optimum amplitude for better viability of platelets.
- Capacity 96 random donor platelet units.
- Stroke length for side to side movement: 36 to 40 mm.
- Oscillation: 70±5 cycles/min.
- Storage: smooth-sliding, stainless steel tray, easily removable for cleaning.
- Power sources: 220-230V, 50-60 Hz AC.
- Capacity 96 Platelet bags, shelf made of S.S.304 with 8 layers each contain 6 bags.
- Stainless steel Mesh of size 350x400mm
APPLICATION:
Ideal for hospitals, blood bank, and laboratories for the safe storage and gentle agitation of platelets.
