PLATELET INCUBATOR WITH AGITATOR

Send Enquiry

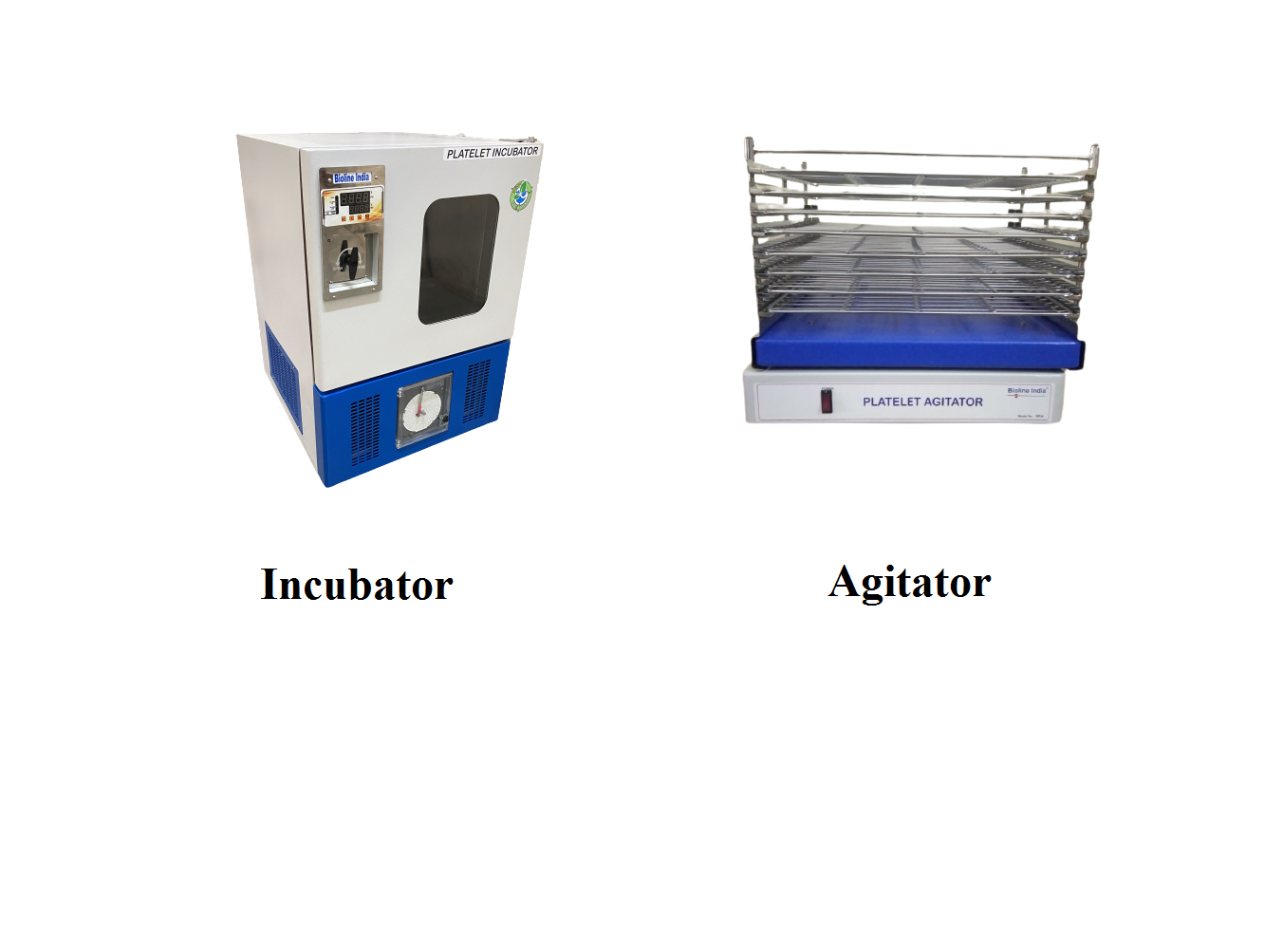

Platelet Incubator with Agitator

Model No : BPIA

Construction : BiolineIndia Platelet  Incubator is constructed with double wall with PUF insulation. Outer body is made of MS 18/20 Gauge with powder coated. Inner Chamber is made of SS 20 Gauge (304 Grade) easy to clean. The Main door is full front view double glass door & Inner door is made of acrylic sheet. Unit having heavy duty movable wheels. Platelet Agitator is made of MS with Powder coated. Racks of agitator is made of SS Jali for
air better circulation in the chamber.

Control Panel : Digital Temperature Controller cum Indicator PID Based for unform temperature controlling 22 0C ± 10C LC : 0.10C. The Agitator is maintain agitating at 70 – 72 RPM (approx). The control panel maintains audio / visual alarm system with complete electronic circuit with safety features. Having comands to SET temperature (min. & Max.) On / OFF alarm systems. Temp. Recorder Weekly Circular Temp.

Inspection Lamp : One Bulb / CFL for internal inspection automatically / manual.

Power Supply : 220V / 240 Volts, 50 Hz, Single Phase AC Supply.
