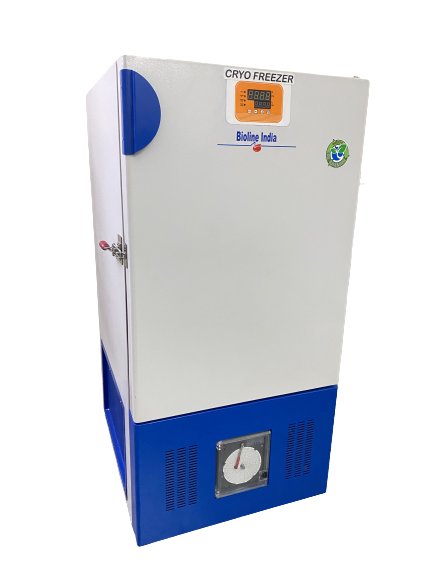

Plasma Freezer ( DF-40°C )
BiolineIndia Deep Freezer is constructed in double wall. The interior of the chamber is made of SS 304 and the exterior is made of MS with powder coated. And elegant looks with PUFF insulation is between. The door is fitted on the chamber by heavy duty hings, Locking arrangement and gasket on the door. The unit having heavy duty lockable castor wheels for easy mobility.
Insulation : Approx 80 mm high density PUF with double seal silicon. Inner door provided of SS PUF insulated for better sealing & proper temperature maintain.
Condensing Unit : Heavy duty refrigeration system maintenance free up to -40° C cascaded connection with hermetically sealed refrigeration single compressor and reliable cascaded refrigeration to mimise noise and vibration. It should have short cooling time of 2 hours at maximum ambient temperature of 33° C.
Control Panel : Control panel temp. from 0° C to -40° C maintain through programmable Microprocessor (PID) based digital temperature controller cum indicator and audio / visual alarm system. Complete electronic circuit with safety features. Having commands to SET temperature (min. & max.) on/off alarm system.
Power Supply : 220 V- 240 V, 50 Hz, Single Phase
