Horizontal Rectangular Autoclave

HORIZONTAL RECTANGULAR AUTOCLAVE

Send Enquiry

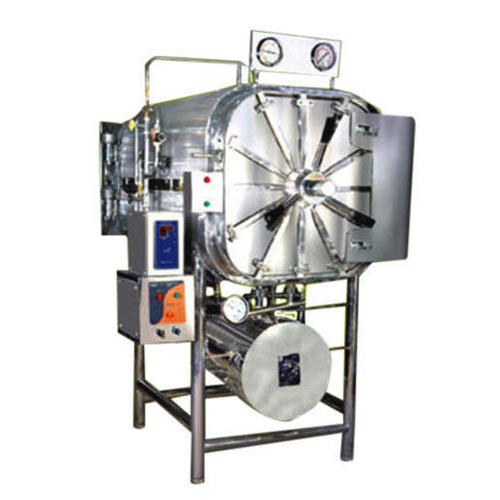

Horizontal Rectangular Autoclave

       Size of the Chamber  :       2x3x5 (600 x 900 x 1500mm)

·      Capacity                  :           810Ltrs

·      Inner Chamber     :          SS 316

·      Steam Jacket         :          SS 304

·      Insulation               :         50 mm High Quality Glass Wool

·      Front SS Canopy   :         Well Polished SS Sheet

·      Mode of Steam      :          Built in SS Steam generator of SS 304 Grade

·      Working pressure :         1.2Kg/cm 2  -2.1kg/cm2

·      Working Temp      :          121 degree C -134 degrre C

·      Door                        :           Double Radial door locking system

Mode of Control    :          Fully automatic with Microcontroller HMI and with pneumatic

actuators pre-vacuum and (Pulsing)

Post Vaccum           :         To eliminate air packs and 6″/28 of Hg will be maintained by Vacuum                                                    pump.

Supply Voltage        :        440 with neutral

Power                        :        36 Kw

Mode of Heating     :        Electrical

Working Pressuren  :       1.2 to 2.1 kgf / cm g

Working Temperature  :   121 134 degree C

Hydraulic test pressure

Jacket               :  4.4 kgf / cm

Chamber           : 3.3 kgf / cm

Selection for Auto Manual with pneumatic actuator



Instrumentation

  • Safety Valve
  • Vacuum Brecker
  • Non-Return Valve
  • Steam Trap
  • Water inlet and Water outlet valves
  • Alarms both audio & visual for deviation in set parameters.

Sequence of Automatic operation includes the followings

  • Automatic water filling for the steam generator.
  • Pulsing ( vacuuming, purging and pre-heating )
  • Sterilization with temp and balance time displayed and data logged.
  • Exhaustion appropriate to liquid, instruments and fabric cycles.
  • Drying cycle with admission of filtered air.
